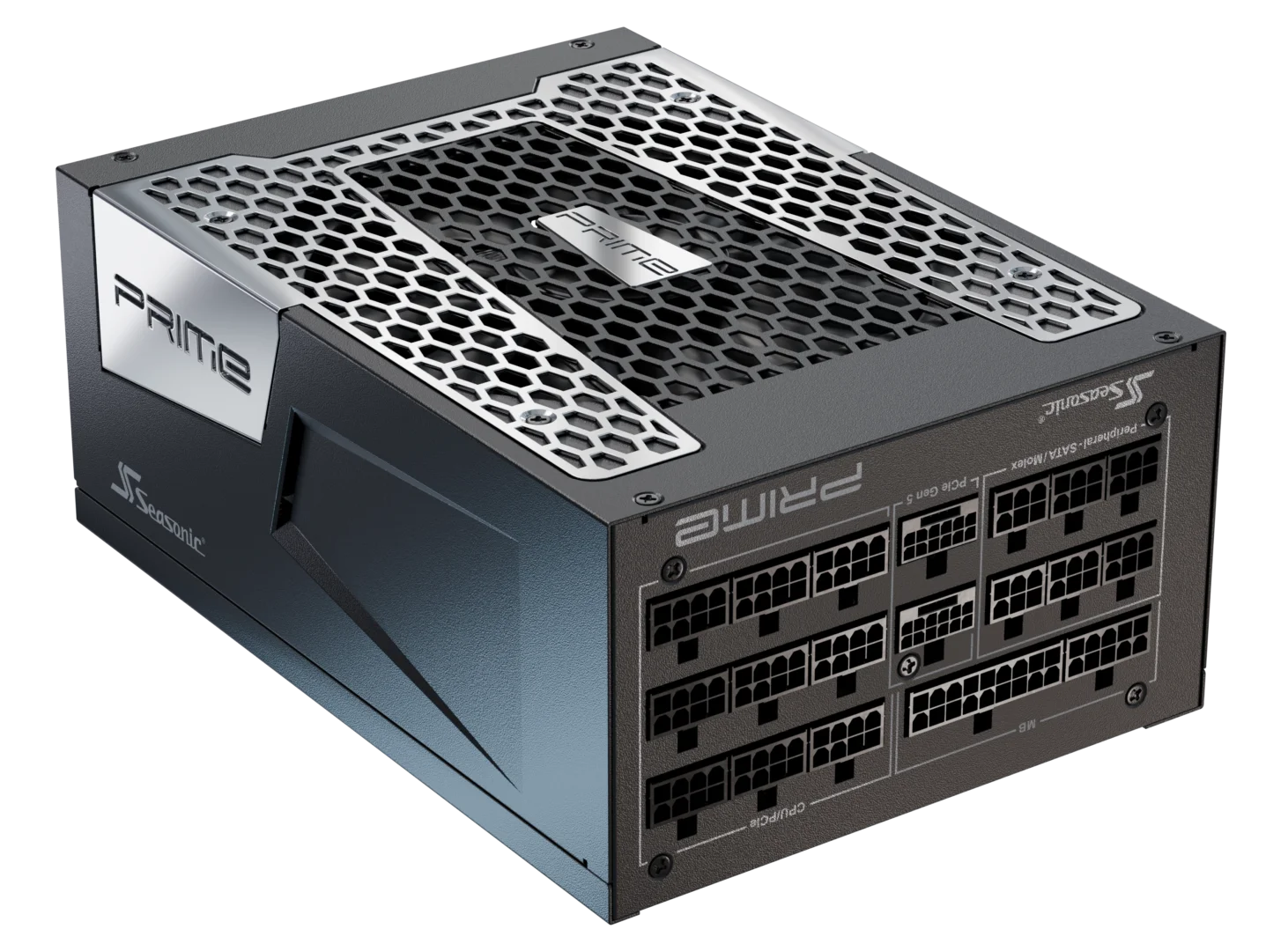

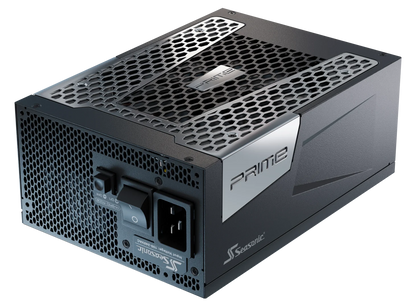

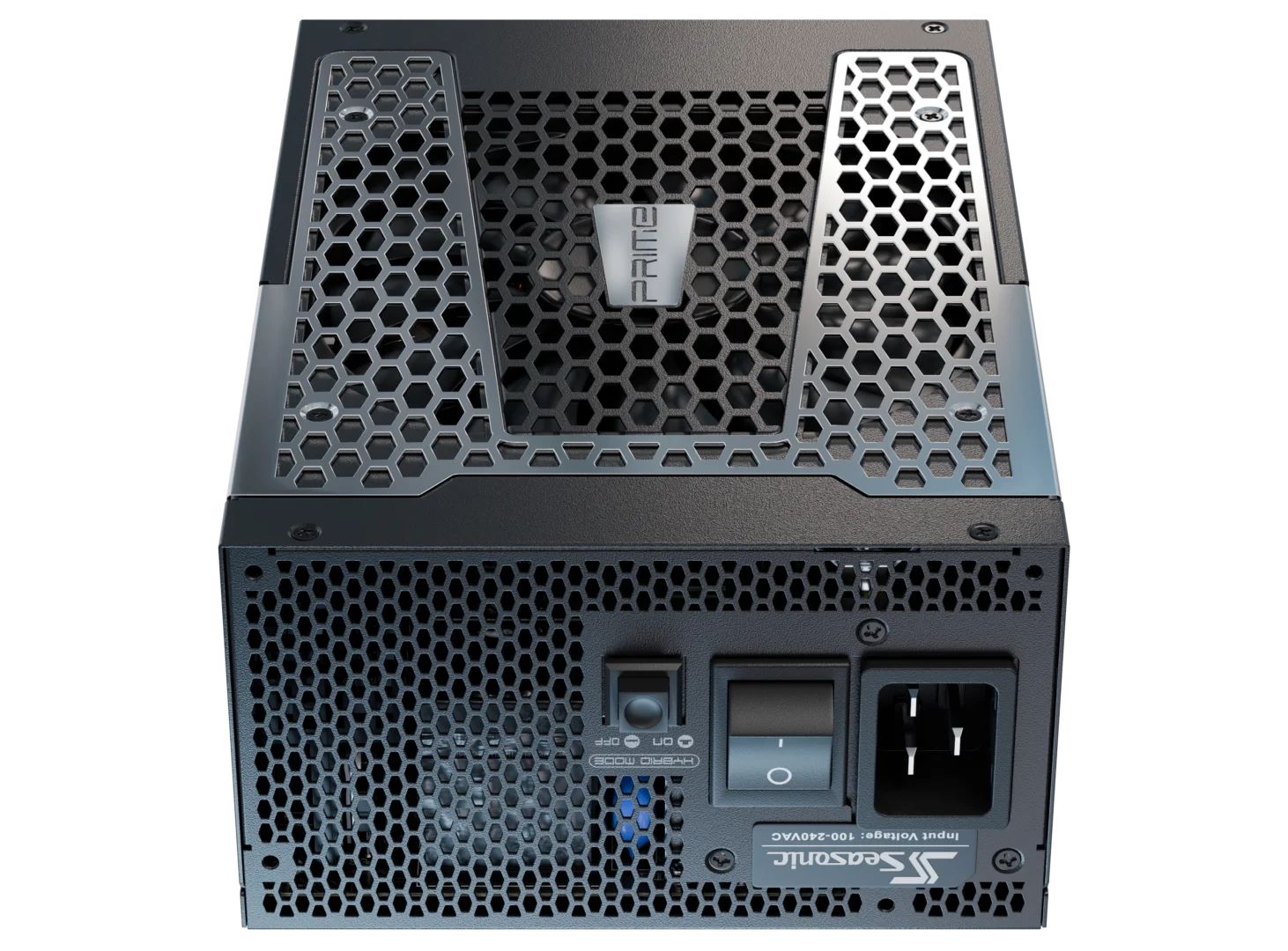

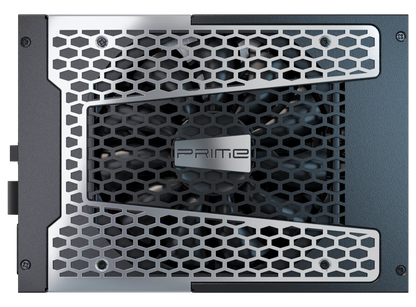

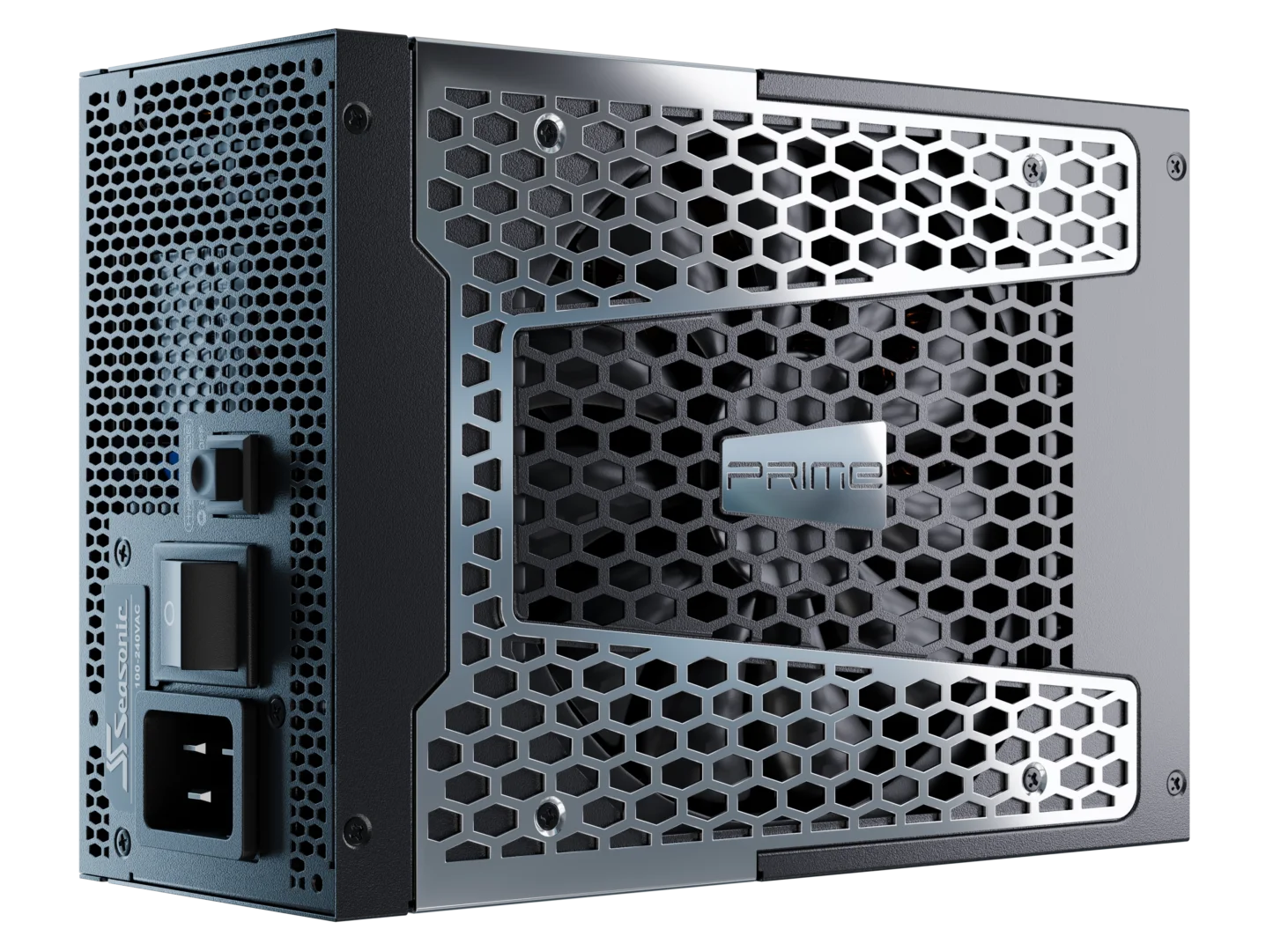

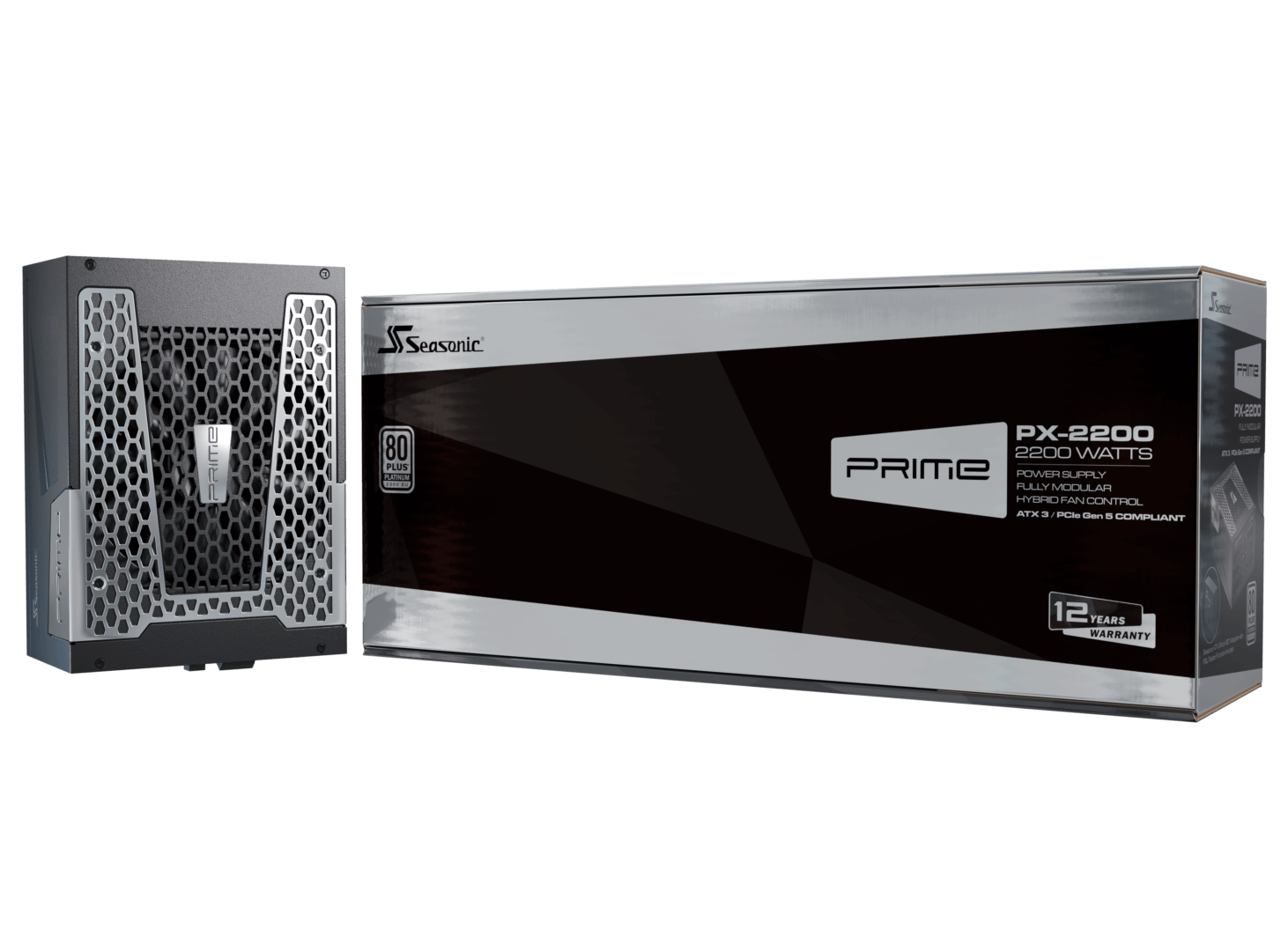

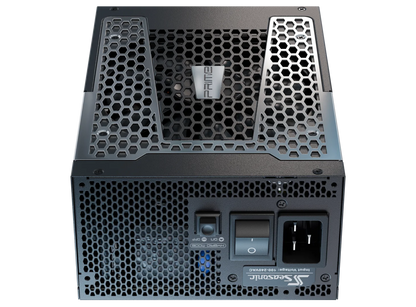

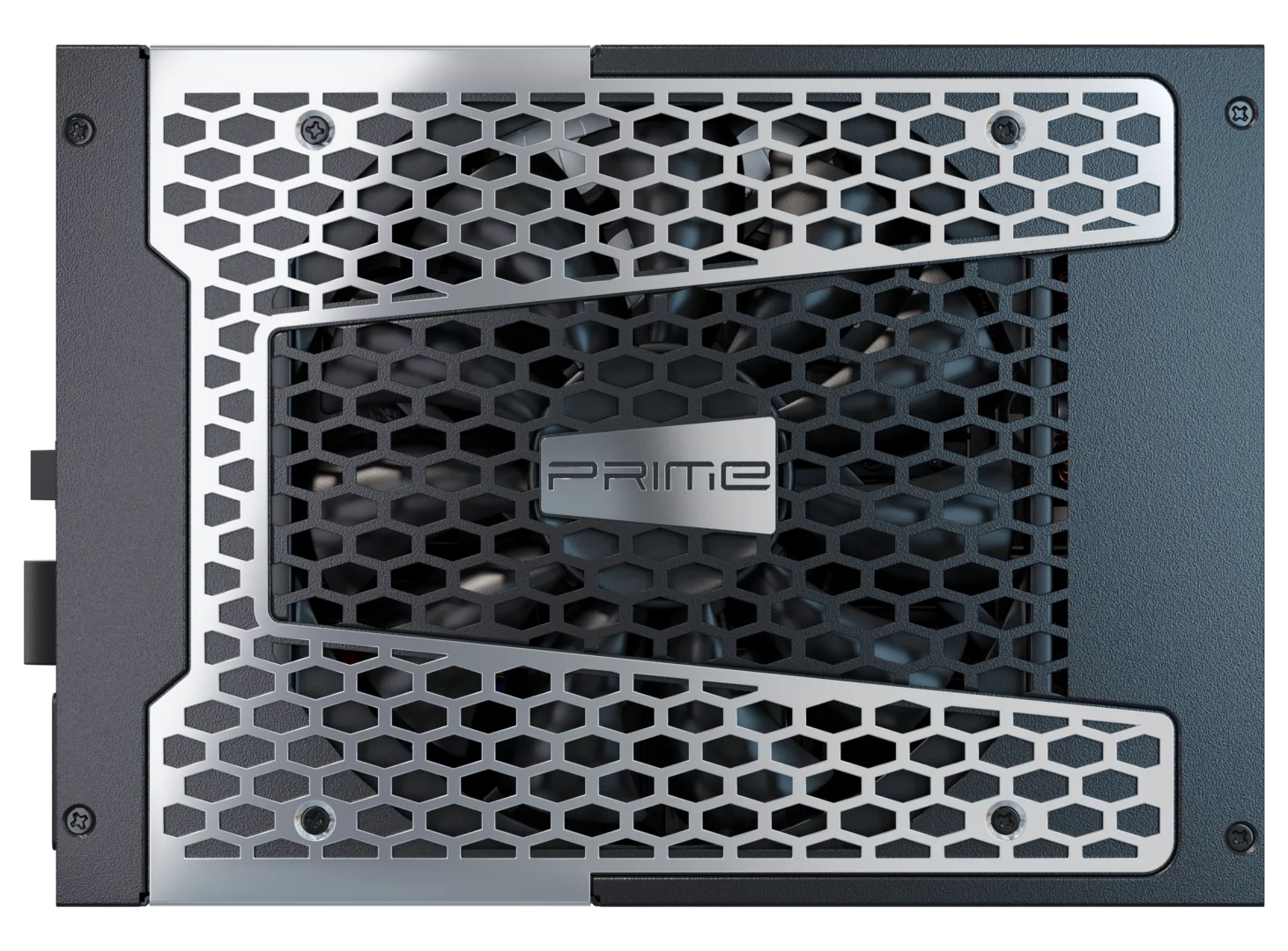

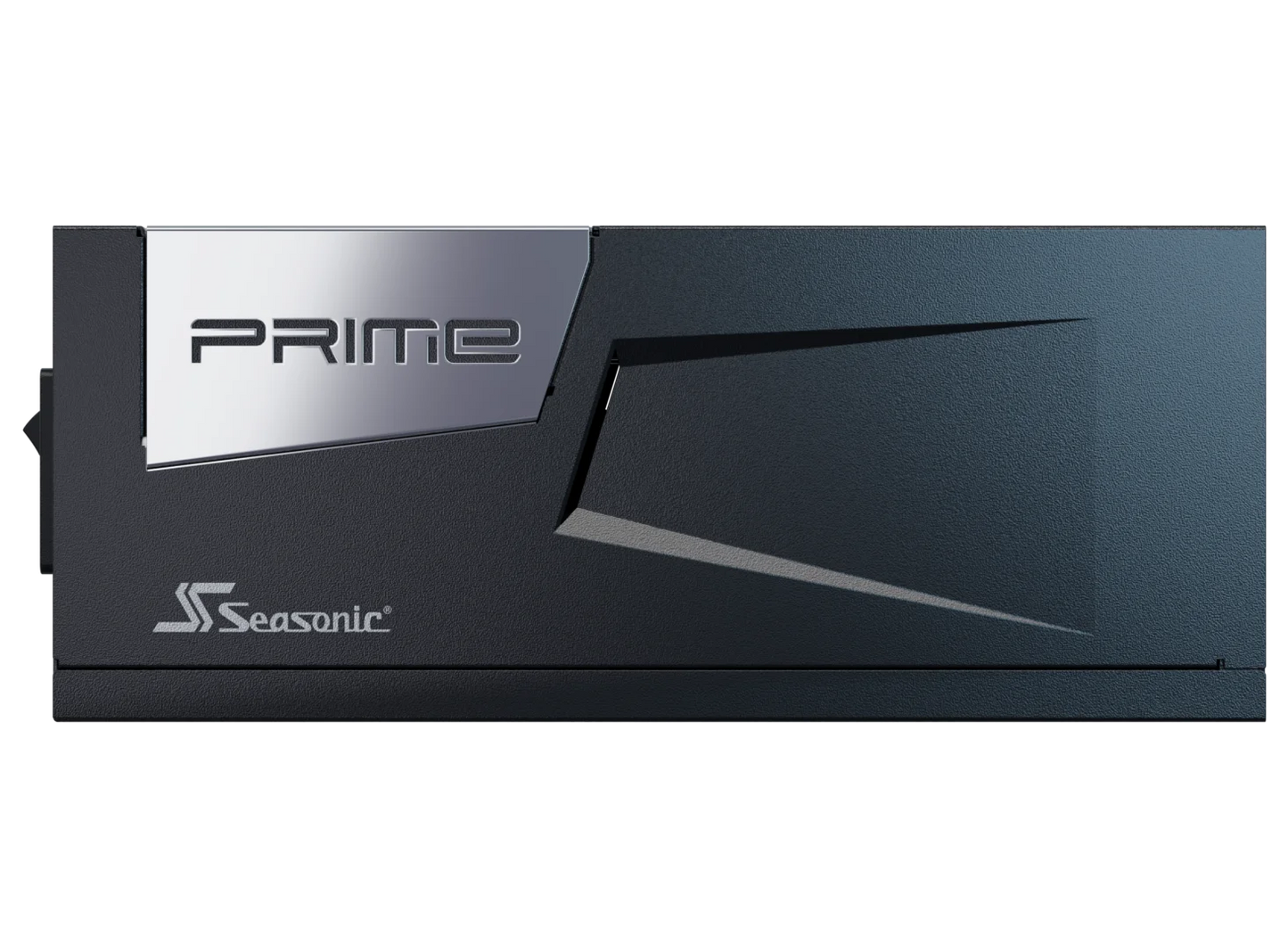

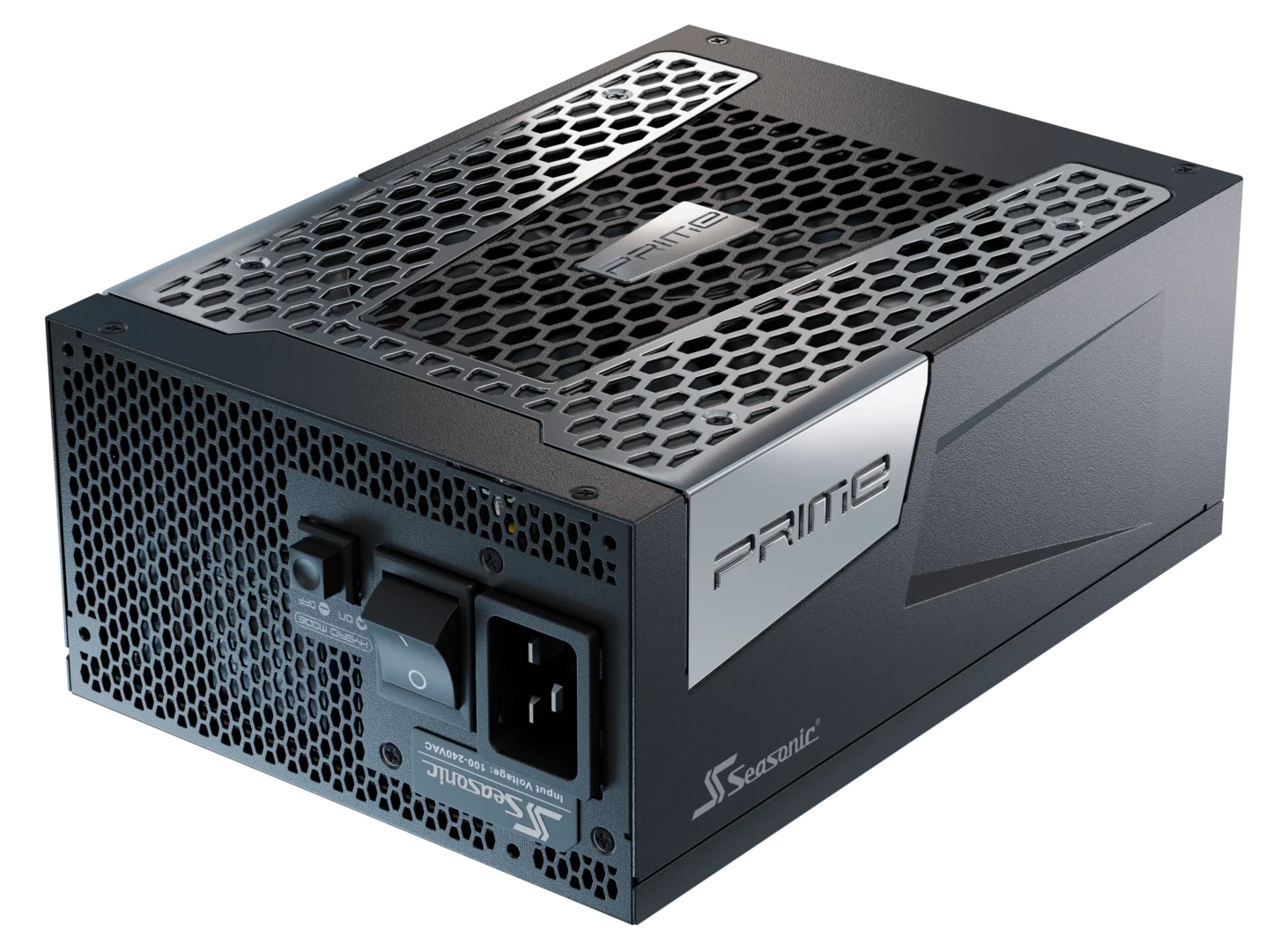

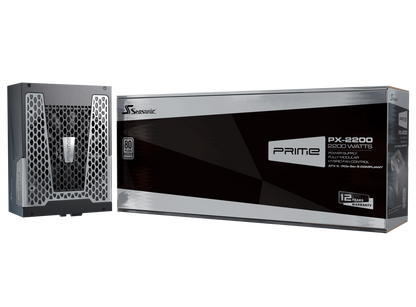

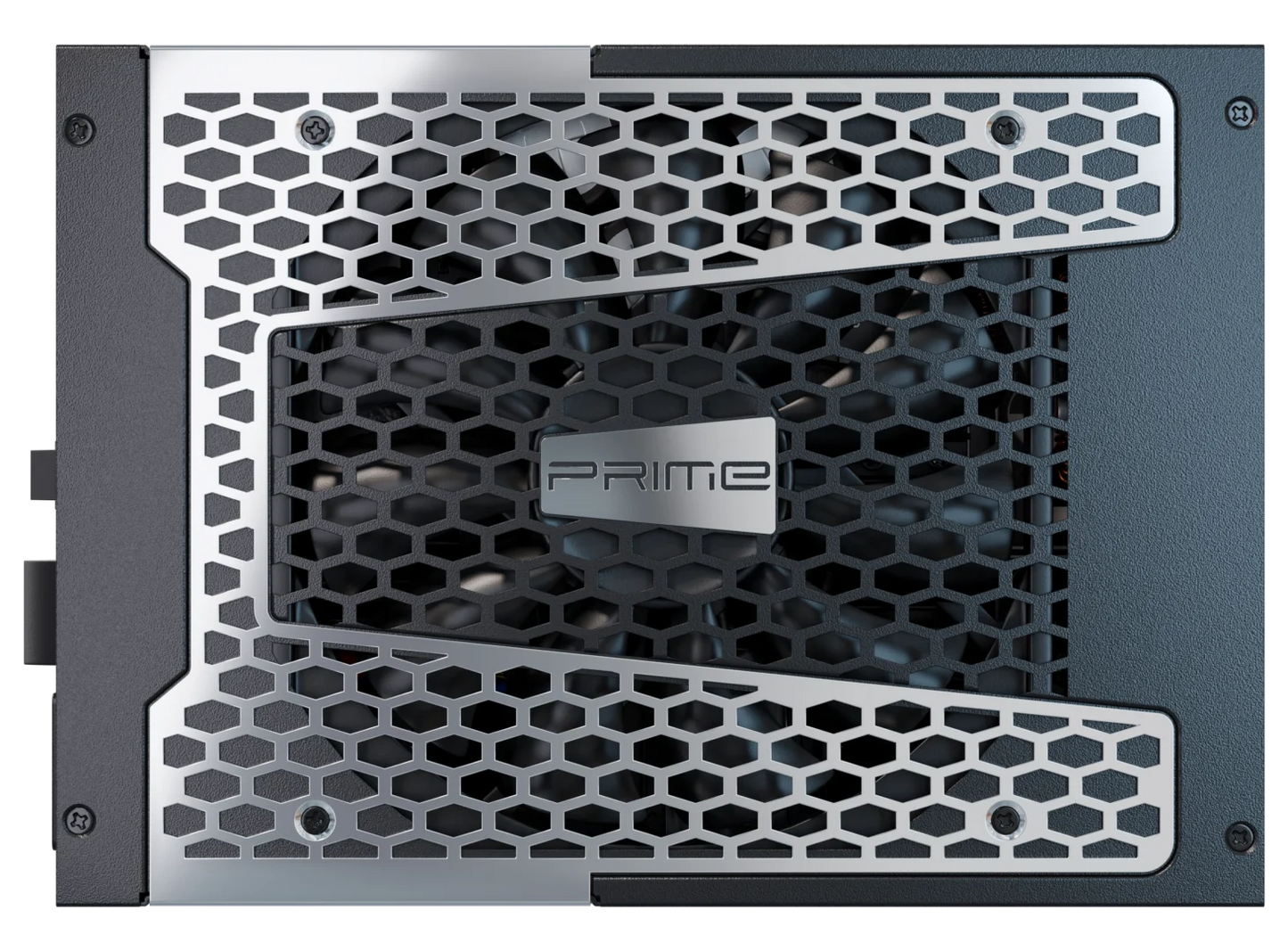

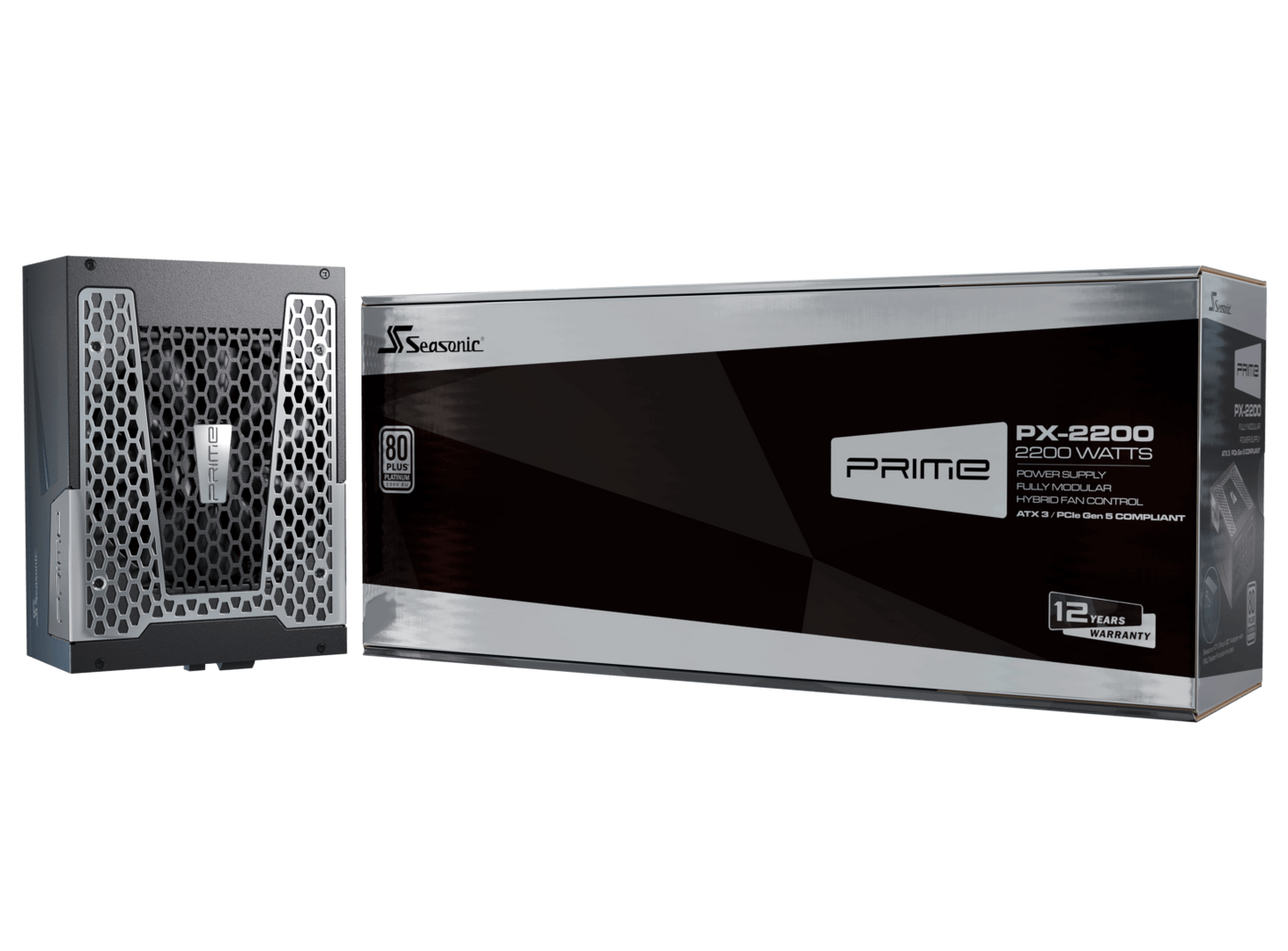

Seasonic 2200W Prime PX-2200 Fully-Modular 80 PLUS PLATINUM ATX3.1/PCIe 5.1 PSU

Seasonic 2200W Prime PX-2200 Fully-Modular 80 PLUS PLATINUM ATX3.1/PCIe 5.1 PSU

$1,404.49 AUD
$1,484.95 AUD $1,404.49 AUD
Sale Sold out
Shipping calculated at checkout.

PRIME PX ATX 3.1
When selecting a power supply, it's crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.

SPECIFICATIONS

Technical Specifications

80PLUS

Platinum

Cybenetics Efficiency Level

TBA

Cybenetics Noise Level

TBA

Form Factor

ATX/EPS

Fan Information

Fan Size

135 mm

Fan Control

Digital Hybrid Fan Control

Fan Bearing

Fluid Dynamic Bearing

Life Expectancy

50,000 hours at 40 C, 15 % - 65 % RH

Cable Information

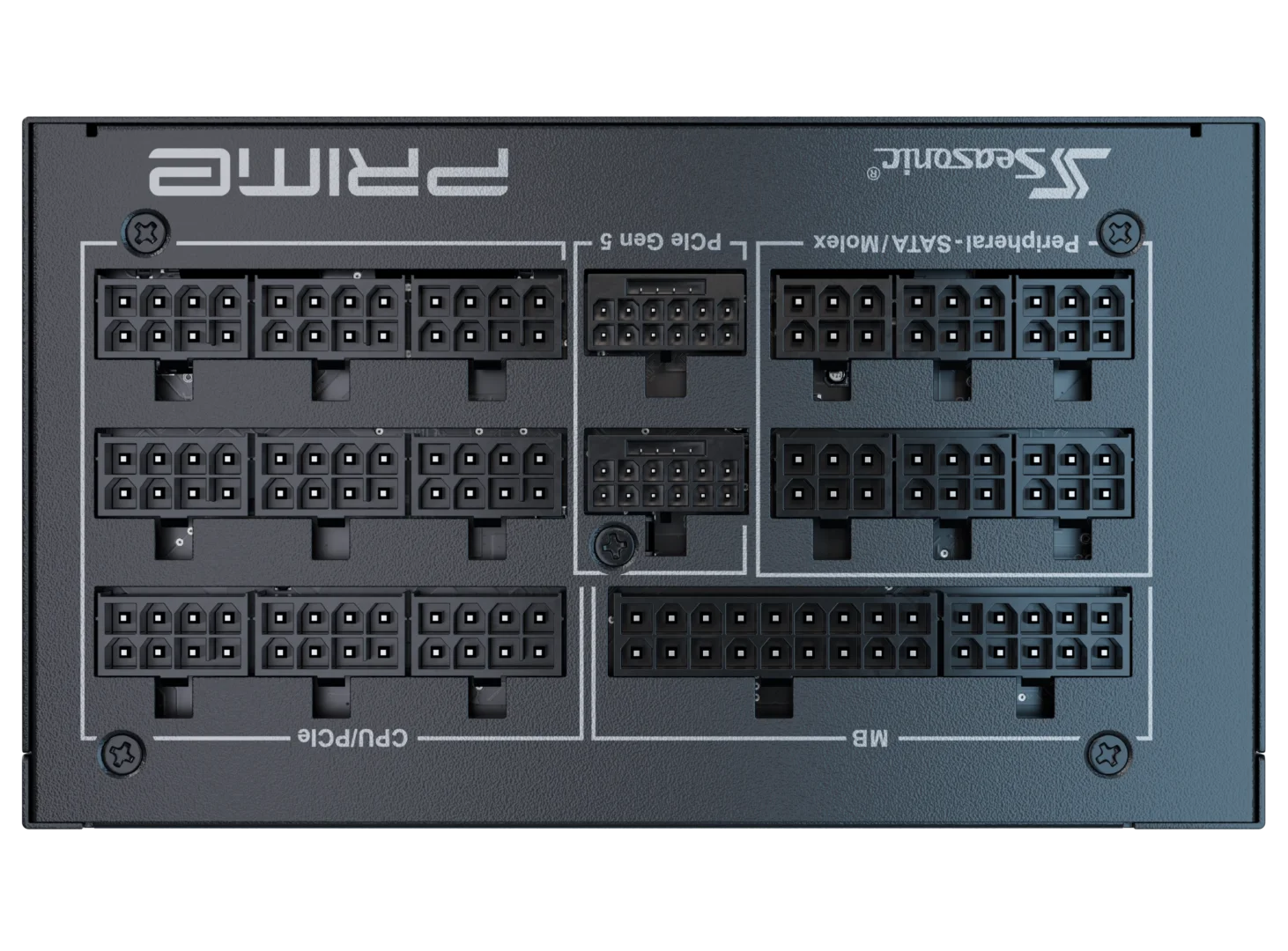

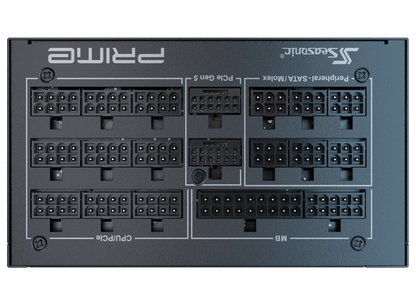

Modularity

Fully Modular

Cable type

Individual Black Cables with Braided Pattern

Electrical Features

Operating Temperature

0 - 50 C

MTBF @ 25 C, excl. fan

100,000 hours

AC Input

Fixed 230 V

Protection

OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental

Safety and EMC

cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance

Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty

12 Years

V28-PSUSEAPX2200A3V28-PSUSEAPX2200A3

Power Output

AC Input

Voltage: 200 V - 240 V

Current: 15 A

Frequency: 50 Hz - 60 Hz

DC Output

Rail

+3.3 V

+5 V

+12 V

-12 V

+5 VSB

Maximum Power

25 A

25 A

183.3 A

0.5 A

3 A

125 W

2200 W

6 W

15 W

Total continuous power

2200 W

  • Order Dispatched within 48hrs
  • Free Delivery Australia wide
  • 30-days Conditional Return
