Simplecom SD511 M.2 SSD Docking Station NVMe and SATA Dual Protocol USB 3.2 Gen 2 10Gbps

Simplecom SD511 M.2 SSD Docking Station NVMe and SATA Dual Protocol USB 3.2 Gen 2 10Gbps

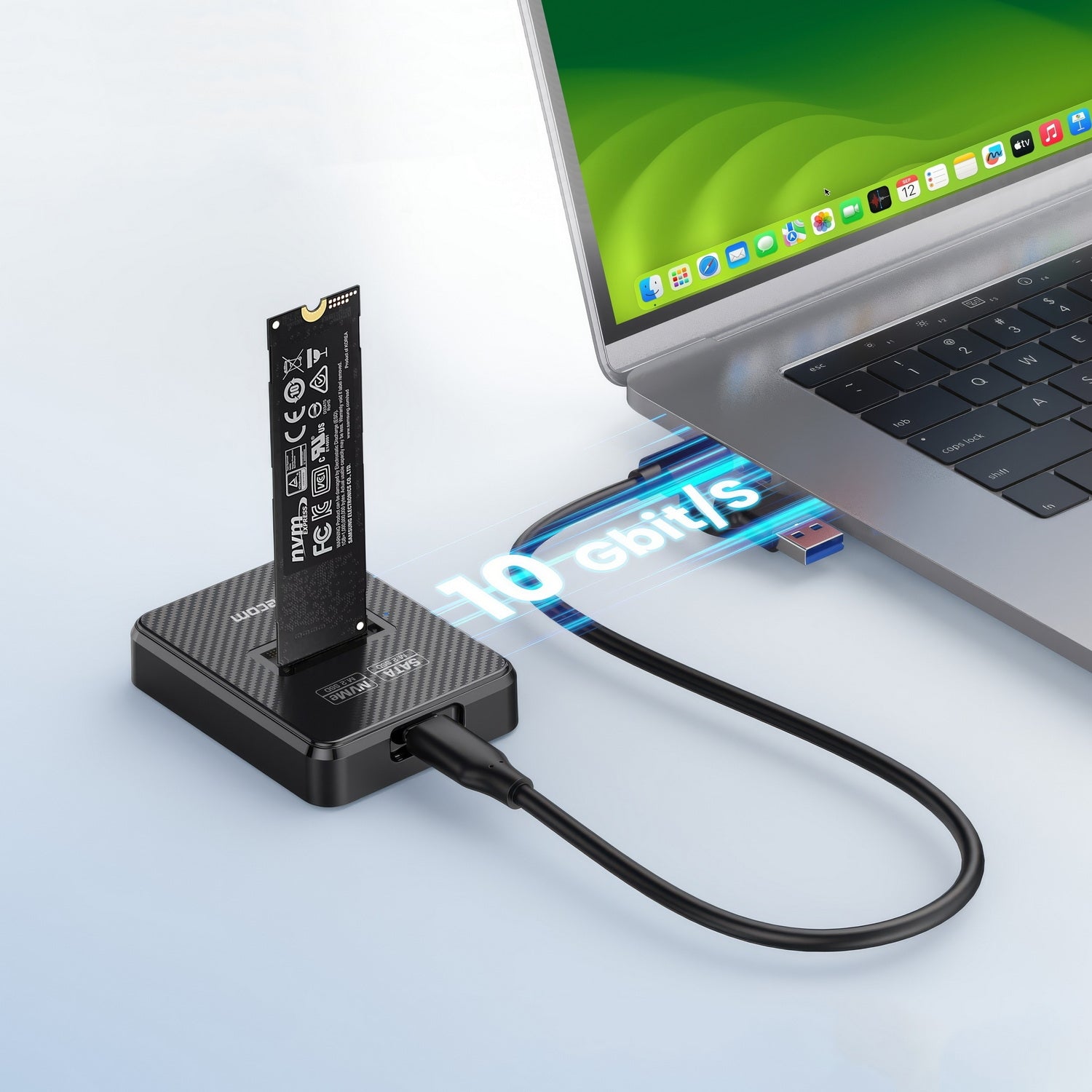

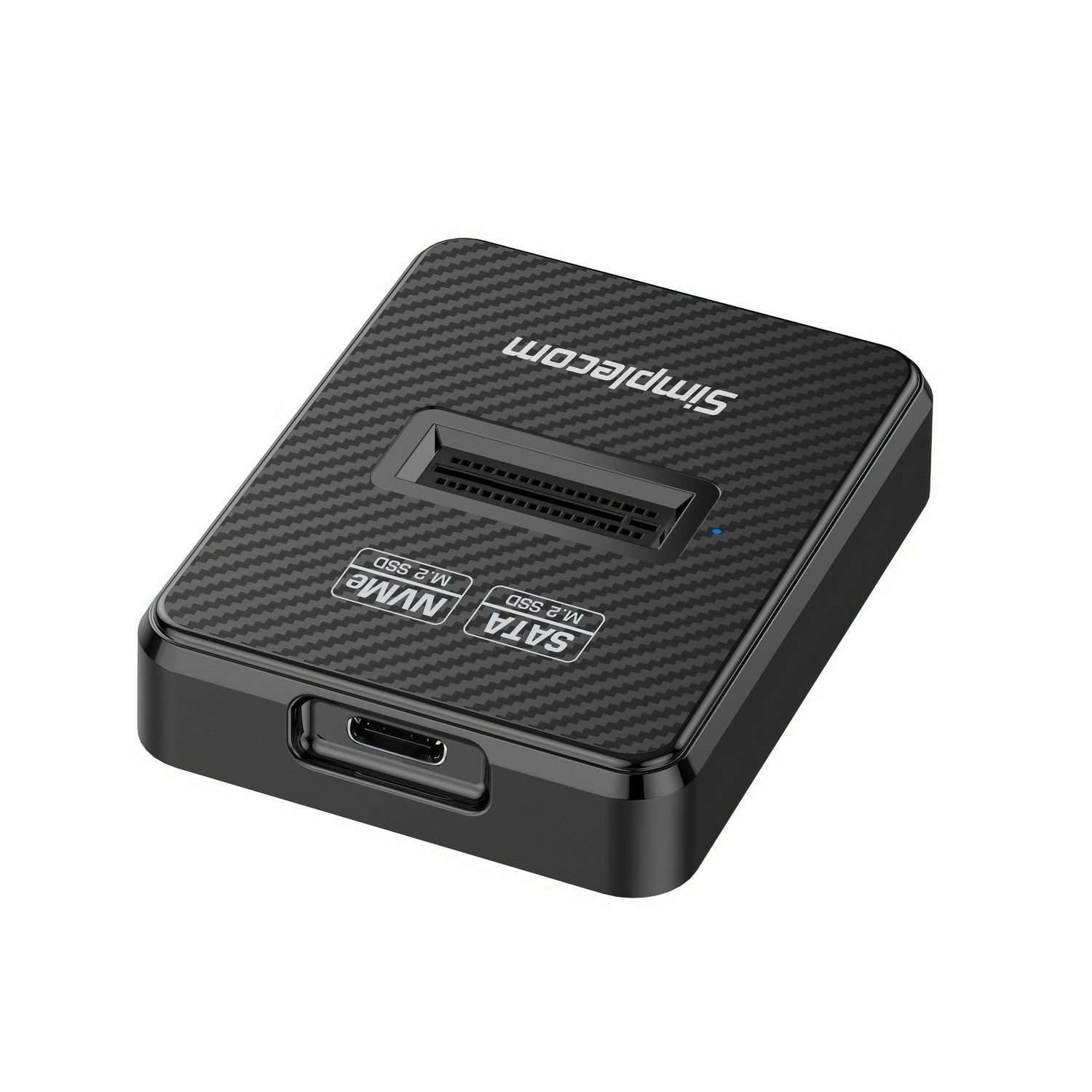

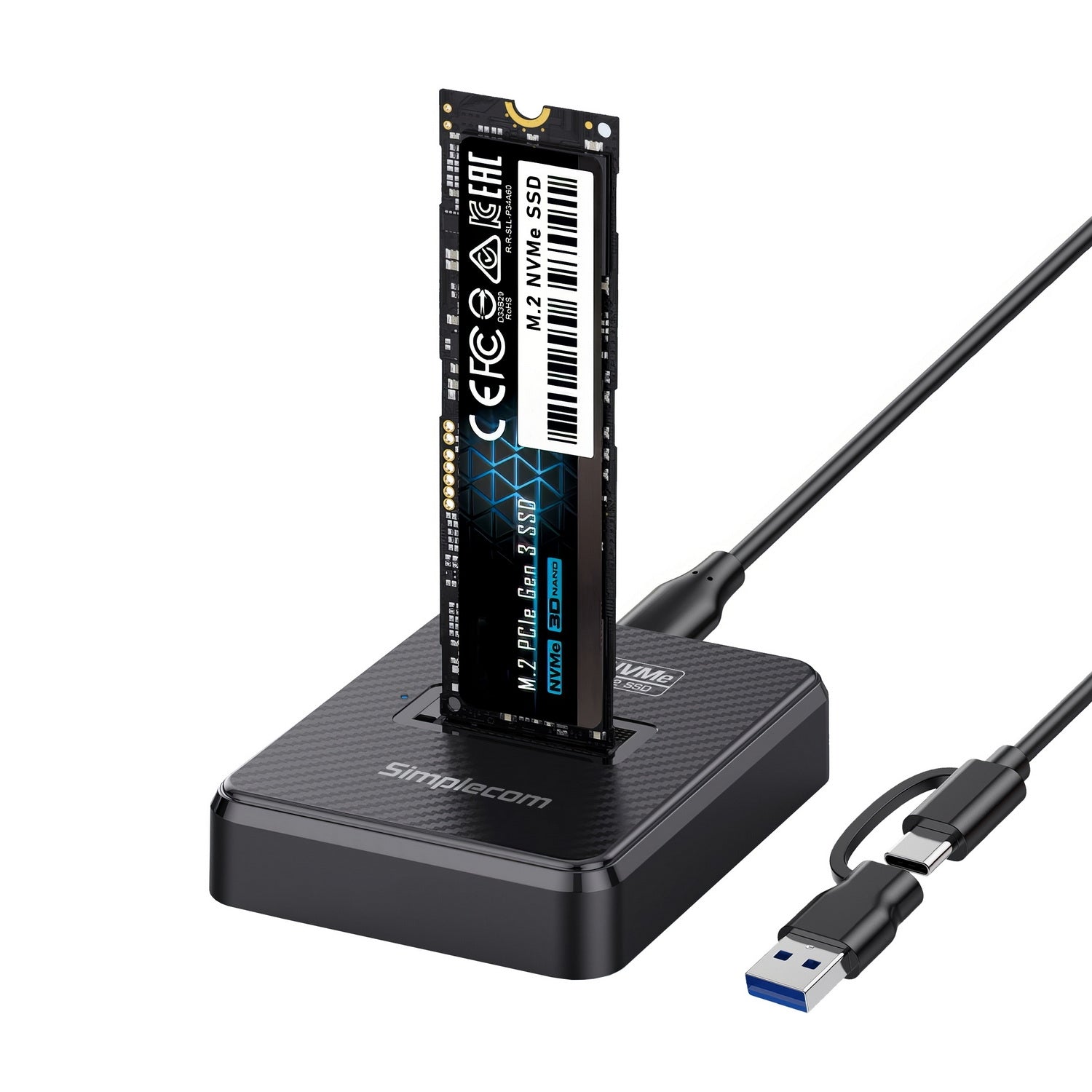

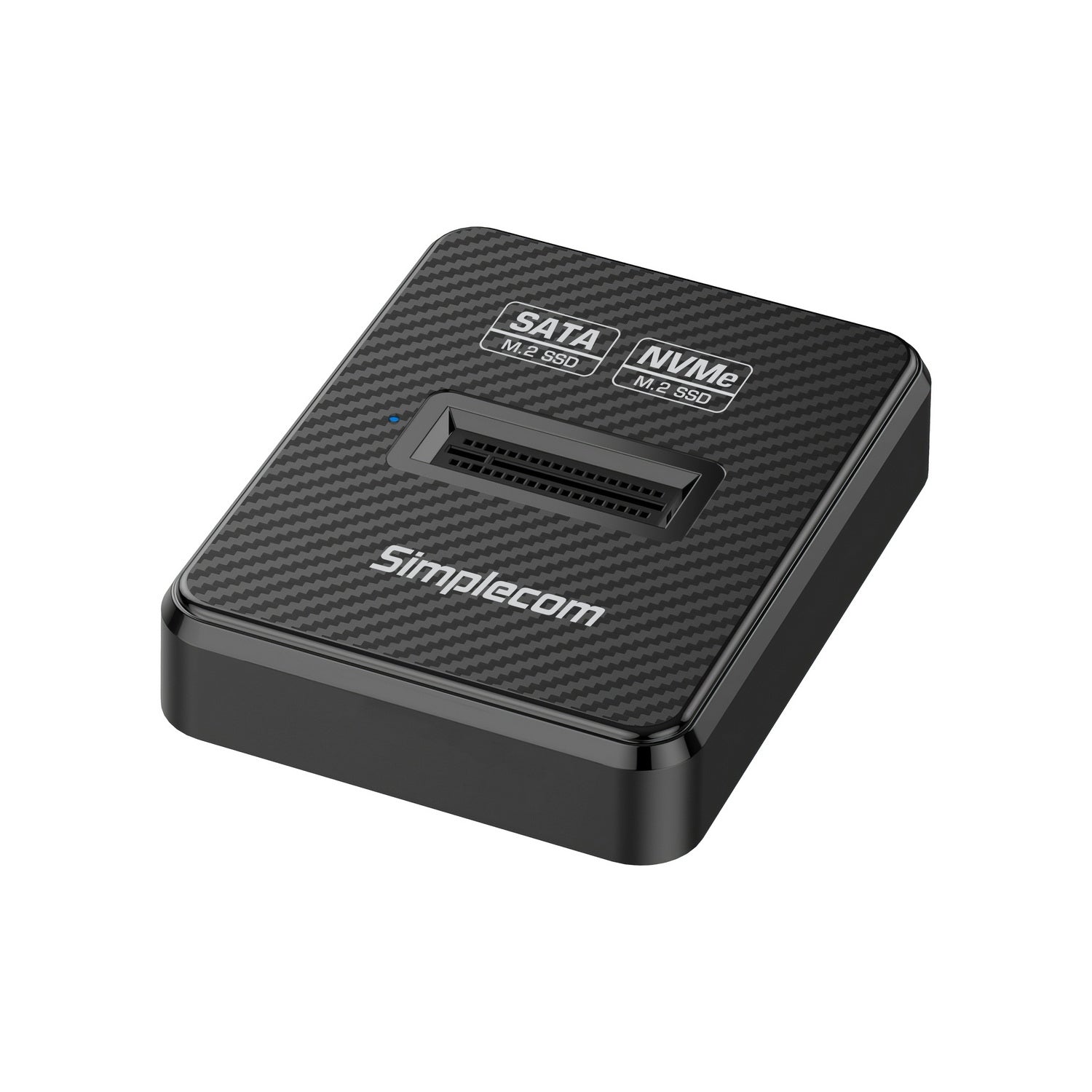

SD511 is a high-speed, dual-protocol M.2 SSD Docking Station designed for both NVMe and SATA M.2 SSDs. Compatible with M Key and B+M Key M.2 SSDs, it provides a quick and hassle-free way to access M.2 SSD drives instantly through the USB port.

Featuring a USB 3.2 Gen 2 interface, it supports fast data transfer speeds of up to 10Gbps, ensuring efficient file transfers and optimal performance. With UASP and TRIM support, it enhances data transfer speeds, improves efficiency. For added convenience, the included USB-C and USB-A combo cable allows flexible connectivity across different devices. With a plug-and-play design, no drivers are needed for quick and hassle-free setup.

Compact, efficient, and easy to use, this M.2 SSD Docking Station is the perfect solution for high-speed data access and management.

Features

• Dual Protocol support for both NVMe and SATA M.2 SSD
• Compatible with M Key or B+M Key M.2 SSD
• USB-C interface compliant with USB 3.2 Gen 2 standard
• Supports data transfer rates up to 10Gbps*
• USB-C and USB-A combo cable, convenient for use on different devices
• Supports USAP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• Plug and play, no driver required
• LED indicator for power and activity status
• USB powered, no external power required

Specifications

• Model: SD511
• Material: ABS Plastic
• Interface: USB-C (USB 3.2 Gen 2)
• Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
• Compatible M.2 Type: NVMe M.2, SATA M.2

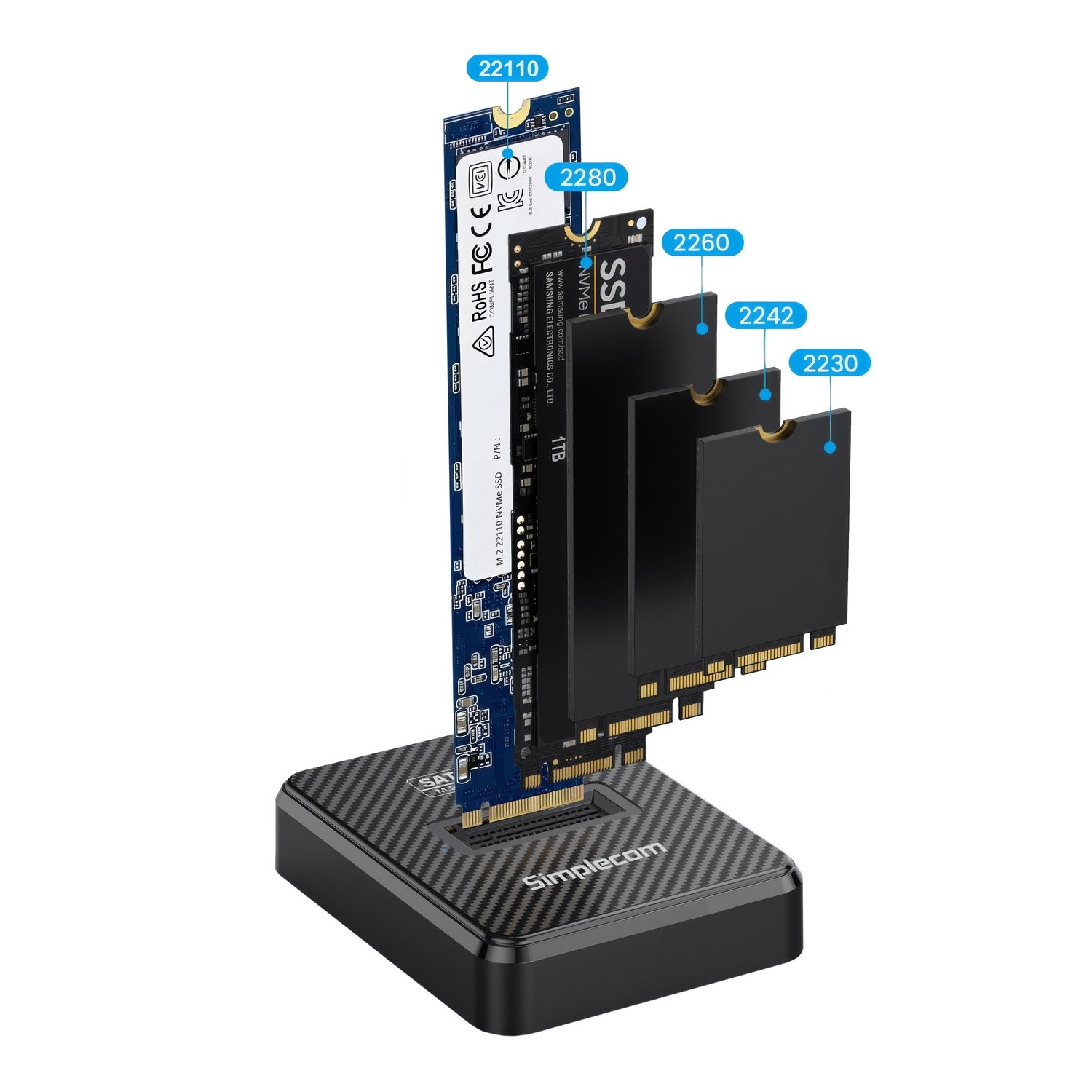

• Compatible M.2 Size: 2230 / 2242 / 2260 / 2280 / 22100
• Dimension: 66 x 51 x13mm (LxWxH)
• Weight: 40g
• Operating System Support: Windows 7 and later, macOS 10.8 and later, Linux

Package Contents

• 1x SD511 M.2 SSD Docking Station
• 1x USB-C + USB-A combo cable
• 1x User Manual

Important Note

* SD511 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
